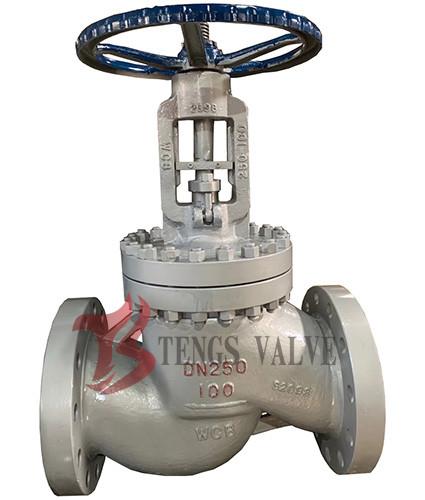

PN100 Flanged Globe Valve Cast Steel WCB DN250 10Inch Metal Seat Stop Valves

Quick Details:

1. Type: Flanged Globe Valve Pn100
2. OS&Y Construction, Bolted Bonnet
3. Size of Globe Valve: Dn250
4. Pressure Ratings: Pn100
5. End Connections: RF, RTJ
6. Materials Available in: A216 WCB

7. Various trim materials are available to suit service conditions
8. Actuator: Manual, Handwheel

Standards

Hydro Test Specifications:

Descriptions:

1. Din Industrial Globe Valve Parts and Material List:

2. Main Connection Dimensions Of Globe Valve PN100:

Features:

1. Generally
Bolted Bonnet: Outside Screw and Yoke;

Rising stems;

Metallic seating surfaces

2. Body and Bonnet Connection
Bolted bonnet;

3. Bonnet Gasket Style

Stainless steel + flexible graphite wounded gasket;

4. Packing Seal
As usual, flexible graphite is used for packing material. PTFE or combined packing material can be also used if being requested by the customer.

5. Stem Design

The stem is of integral forged design. The minimum diameter of the stem shall per the standard requirement.

6. Backseat Design

All globe valves have the backseat design. In most cases, the carbon steel globe valve is fitted with a renewable backseat. For stainless steel globe valve, the backseat is machined directly in the bonnet or is machined after welding. When the globe valve is at fully open position, the sealing of the backseat can be very reliable.
