Ansi 900LB API594 Swing Check Valve A216 WCB Flanged RJ Ends B.C Type NRV Valves​ H44H

Features

1. Generally

Bolted Bonnet / Pressure Sealing Bonnet;

Swing Disc;

Metallic Seating Surfaces

2. Body and Bonnet Connection

Class900LB check valves are for bolted bonnet

3. Cover Gasket Style

Metal ring gasket

Pressure seal cover / bonnet design.

4. Seat

For carbon steel check valve, the seat is usually forged steel. The seat sealing surface may be spray-welded with hard alloy if specified by the customer. For Stainless steel check valve, integrai seat is usually adopted, or it can be machined integrally after hard alloy welded. The threaded or welded type seat is also optional for stain less steel check valve if being requested by the customer.

Quick Details:

1. Type: WCB Swing Check Valve
2. Bonnet Type:

Bolted Bonnet

3. Disc Type: Swing Disc
4. Size Range: 2in - 24in
5. Pressure Ratings: ANSI 900LB / 900#
6. End Connections: Flanged (RF, RTJ)
7. Materials: Cast Steel in WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, 4A, 5A or Equivalent,

8. Various trim materials available to suit service conditions
9. NACE MR 0175

Standards

Design and manufacture: Cast steel check valve according to BS 1868, API594, ASME B16.34 and API 6D;
Forged stee! check valve according to API 602.

Inspection and test: API 598 or API 6D.

End flange dimension: ASME B16.5 (for NPS≤24),ASME B16.47 series B,

API 605 or ASME B16.47 series A,MSS SP-44 (for NPS > 24).

BW end dimension: ASME B16.25.

Face to face and end to end: ASME

Pressure-temperature ratings: ASME B16.34.

Shell wall thickness: API 600 and BS 1868.

Descriptions:

1. Swing Check Valve Parts and Material List:

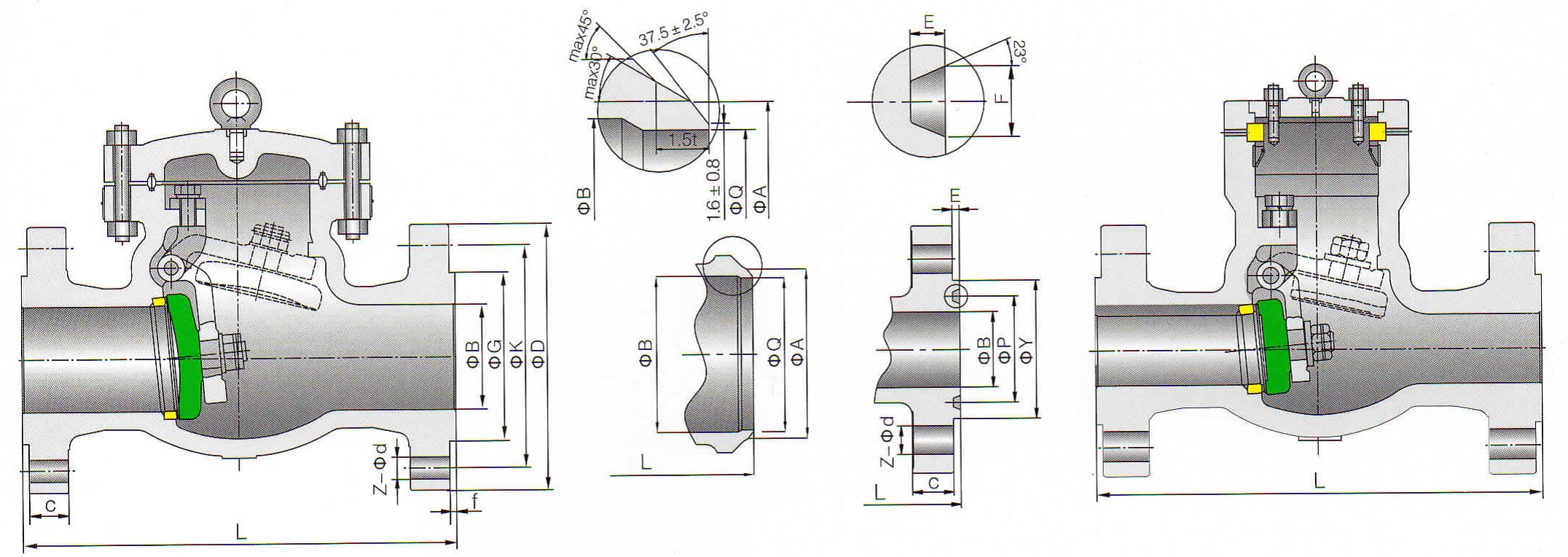

2. Main Connection Dimensions for Class 1500LB:

Tengs Valve - China High Quality Industrial Valve and Strainer Supplier, With More than 20 Years' Manufacturing and Exporting Experience.

Our Leading Products are Cast Steel / Forged Steel Industrial Valves and Strainers, Such as Gate Valve, Check Valve, Globe Valve, Ball Valve, Butterfly Valve, Y Type Strainer, Basket Strainer, T Type Strainer and Temporary Strainer.

All the Industrial Valves and Strainers are According to the International Standards Api, Ansi, Din, and GB etc, and the Materials Include Carbon Steel, Alloy Steel and Stainless Steel: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, 4A, 5A, C95800, A105, LF2, F11, SS304, SS304L, SS316, SS316L, F51 and F53 etc. Sizes Range From 1/2" to 48" (Dn15 - Dn1200), Pressure Rating From Ansi Class150LB to 2500LB (Pn10 - Pn100).

Modern Workshop, Standardized Production, We Implement Strict Quality Inspection System, In-House Inspection or Third-Party Inspection to Make Sure All the Products are Qualified Before Delivery.

Our Industrial Valve and Strainer are Widely Used in Oil, Gas, Petrochemical, Water Treatment and Energy Industries. And exported to Many Countries and Regions.

We Provide OEM & Custom-made Service, Hope to Cooperate and Provide You the Quality Products and Service.
