Temporary Strainer Stainless Steel Start-Up Strainers Piror to Flushing Pipelines

Temporary strainer are designed to be used in situations where a temporary amount of contamination may occur in the pipeline: plant start up applications or plant repairs, and offer an affordable method of protecting mechanical equipment from dirt, scale or other foreign matter.

Temporary Strainer can be used in steam, water, oil or gas service, and are installed between two flanges for quick protection of equipment.

Features of Temporary Strainer :

1. Adequate strength of elements and housing

2. Lower Cost

3. Less Weight

4. Gross filtration area minimum 3 to 5 times of inlet cross section area

5. Strainers meet ASME B16.5 or ASME B16.25 & ASME B16.34 requirements

Temporary Strainer Style

Mainly 3 Type Temporary Strainer:

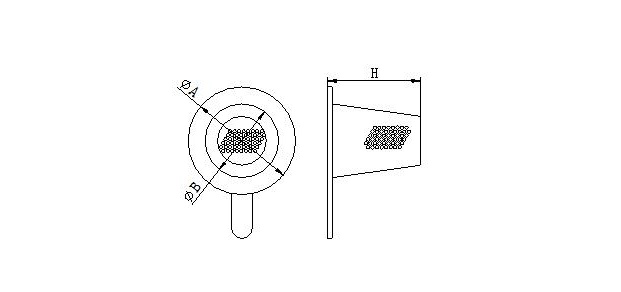

A. Temporary conical Strainer

B. Temporary Basket Strainer

C. Temporary Plate Strainer

Descriptions

1. Temporary Strainer Size:

Manufacturing Size Range: 3/4" (DN 20) to 36" (DN 900)

2. Tempoary Strainer Pressure Rating:

Suitable to mount between & Pressure Rating : ANSI Class 150LB / 300LB / 600LB,

DIN PN10 / PN16 / PN25 / PN40

3. Temporary Strainer Material:

Material of Construction for Temporary Strainer :

Duplex Steel / Super Duplex Steel

Stainless Steel 304 / 316

Stainless Steel 304L / 316L

4. Temporary Strainer Flow Direction:

Temporary strainer can be installed 2 directions as follow:

A. Fluid flow from outside of strainer to inside.

B. Fluid from inside of strainer to outside.

5. Perforated Hole and Mesh Size

1. Stainless Steel Perforated Hole Size: 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, 8mm and 10mm etc.

2. Mesh Size Chart:
