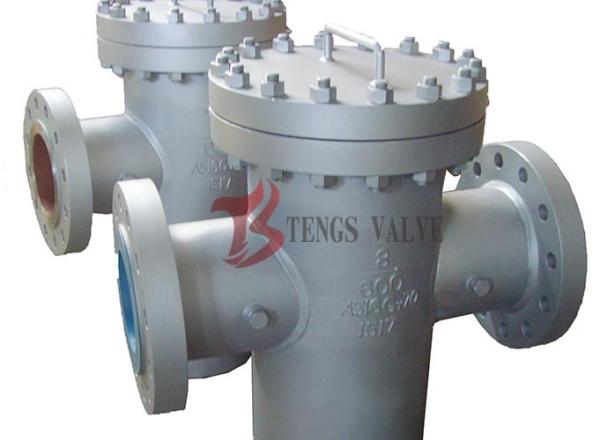

High Pressure Fabricated Steel Basket Strainers Flange to CL600LB Single Basket

Quick Detail

1. Product: Fabricated Simplex Basket Strainers 600LB

2. Sizes: 2in - 24in

3. Pressure rating: 600LB / 600#

4. Suitable medium: Water, gas, oil, steam etc.

5. Body material: A106, SS304, SS316, SS304L, SS316L

6. Screen: Stainless steel (SS304, SS316)

7. Mesh size: 20mesh, 40mesh, 60mesh, 80mesh, 100mesh, 200mesh, 400mesh etc

8. End connection: RF, BW

9. Body Type: Welded / Fabricated

10. Cover Type: Bolted Cover / BC

Basket Strainer Features

Simplex basket strainer is suitable for liquid, hold substantially more material than Y strainers and offer a lower pressure drop, use this simplex basket strainer for such applications: industrial water, and oil systems for a factory or plant.

Installed upright, in a horizontal line, the basket strainer lifts out from the top.

Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as water, ammonia, oil and hydrocarbon products etc.

B) Corrosive medium for chemical products such as sodium hydrate, caustic soda, metric acid, acetic acid etc.

C) Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen etc.

D) Industry hygiene medium in light industry, foodstuff and pharmacy such as beer, drink, beverage, dairy products etc.

Basket Strainer Standards

Design and Manufacture: ASME B16.34
Inspection and Test: API 598
End flange dimension:ANSI B16.5
BW end dimension: ASME B16.25
Face to face and end to end: ASME B16.10
(Check valve/Globe valve)
Pressure-temperature ratings: ASME B16.34

Strainer Main Technical Paremeters
A) Operating Temperature(oC):CS:-30~380oC, SS: -80~450oC;

B) Operating Pressure(Mpa): 0.6 ~ 11.0 Mpa

C) Body Material: Pipe A106,WPB, SS304, SS304L, SS316, SS316L, Steel Plate etc.

D) Seal Material : Asbestos, NBR, PTFE, Graphite+SS.

E) Strainer Element Material: Stainless steel, Duplex Stainless Steel

F) Screen mesh from 10 mesh to 400 mesh,also we can produce according to customer's repuinement.
G) Shell inspection And Test: API598 / ISO5208

Descriptions

1. Main Parts and Material List For Simplex Basket Strainer

2. Main Connection Dimensions for Class 600LB
