Welded Simplex Basket Strainer Flanged Fabricated Bucket Strainers Api Class 300LB
Quick Detail
1. Product: Fabricated Simplex Basket Strainer
2. Sizes: 1" - 24"
3. Pressure rating: ANSI 300LB / 300#
4. Suitable medium: Water, gas, oil, steam etc.
5. Body material: A106, WPB, SS304, SS316, SS304L, SS316L
6. Screen: Stainless steel (304SS, 316SS, 2205, 2507)
7. Mesh size: 20mesh, 40mesh, 60mesh, 80mesh, 100mesh, 200mesh, 400mesh etc
8. End connection: RF, BW
9. Cover Type: Bolted Cover
Basket Strainer Features
Simplex basket strainer is suitable for liquid, hold substantially more material than Y strainers and offer a lower pressure drop, use this simplex basket strainer for such applications: industrial water, and oil systems for a factory or plant.
Installed upright, in a horizontal line, the basket strainer lifts out from the top.
Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as
water, ammonia, oil and hydrocarbon products etc.
B) Corrosive medium for chemical products such as sodium hydrate, caustic soda, metric acid, acetic acid etc.
C) Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen etc.
D) Industry hygiene medium in light industry, foodstuff and pharmacy such as beer, drink, beverage, dairy products etc.
Strainer Main Technical Paremeters
A) Operating Temperature(oC):CS:-30~380oC, SS: -80~450oC;
B) Operating Pressure(Mpa): 0.6 ~ 5.0 Mpa
C) Body Material: Pipe A106, SS304, SS304L, SS316, SS316L, and Steel Plate etc.
D) Seal Material : Asbestos, NBR, PTFE, Graphite+SS.
E) Strainer Element Material: Stainless steel, Duplex Stainless Steel
F) Screen mesh from 10 mesh to 400 mesh,also we can produce
according to customer's repuinement.
G) Shell inspection And Test: API598 / ISO5208
Basket Strainer Standards
Design and Manufacture: ASME B16.34
Inspection and Test: API 598
End flange dimension: ASME B16.5,ASME B16.47 A
BW end dimension: ASME B16.25
Face to face and end to end: ASME B16.10
(Check valve/Globe valve)
Pressure-temperature ratings: ASME B16.34
Descriptions
1. Main Parts and Material List For Simplex Basket Strainer
| NO | Parts name | Material | ||||
| 1 | Body | A106+A105 | SS304 | SS304L | SS316 | SS316L |
| 2 | Screen | SS304 | SS304 | SS304L | SS316 | SS316L |
| 3 | Gasket | Graphite Or Graphite+Stainless Steel(304, 304L, 316,316L) | ||||
| 4 | Cover | A105 | A182 F304 | A182 F304L | A182 F316 | A182 F316L |
| 5 | Cover Bolt | A193 B7 | A193 B8 | A193 B8 | A193 B8M | A193 B8M |
| 6 | Cover Nut | A194 2H | A194 8 | A194 8 | A194 8M | A194 8 |
| 7 | Drain plug | A193 B7 | A193 B8 | A193 B8 | A193 B8M | A193 B8M |

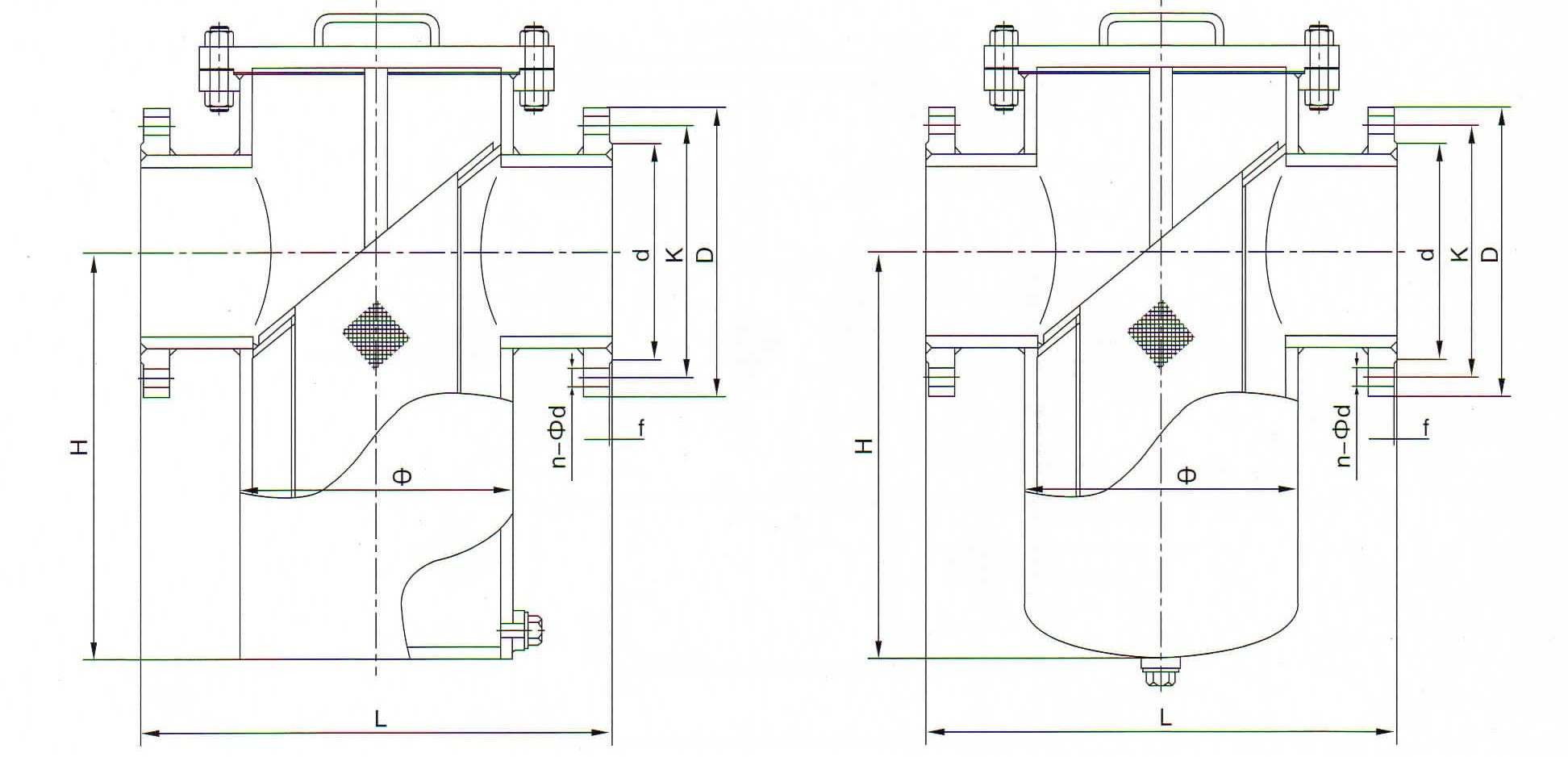

2. Main Connection Dimensions
Inline connection flat basket strainer
| NPS | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 18 | ||
| DN | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 400 | 450 | ||
| Type | Φ | 114 | 114 | 114 | 114 | 114 | 140 | 168 | 219 | 273 | 324 | 377 | 426 | 530 | 610 | |
| H | 120 | 130 | 140 | 150 | 180 | 200 | 230 | 300 | 370 | 480 | 525 | 580 | 750 | 780 | ||
| f | 1.6 | |||||||||||||||
| SDGP-4P-300LbC | 300Lb | L | 203 | 216 | 229 | 267 | 292 | 318 | 356 | 400 | 445 | 533 | 622 | 711 | 864 | 978 |
| SDGP-4P-300LbP | D | 125 | 135 | 155 | 165 | 190 | 210 | 155 | 280 | 320 | 380 | 445 | 520 | 650 | 710 | |
| SDGP-4R-300LbR | K | 89 | 98.5 | 114.5 | 127 | 149 | 168.5 | 200 | 235 | 270 | 330 | 387.5 | 451 | 571.5 | 628.5 | |
| n-Φd | 4-18 | 4-18 | 4-22 | 8-18 | 8-22 | 8—22 | 8-22 | 8-22 | 12-22 | 12-26 | 16-29.5 | 16-32.5 | 20-35.5 | 24-35.5 | ||
| Drain Plug | I | R1/2" | R3/8" | R3/4" | ||||||||||||
| ll-NPS | 1/2"-RF 1/2"-M | 3/4"-RF 3/4”-M | 1"-RF 1"-M | |||||||||||||
|
|
