Forged Carbon Steel CS Globe Valves 1.5in Class 800 A105N J11H NPT Threaded Ends

Features

1. Structure Features of Globe Valve
Outside Screw and Yoke: Rising stems: Metallic seating surfaces

2. Body and Bonnet Connection
Bolted bonnet, Welded Bonnet

3. Bonnet Gasket Style

Stainless steel + flexible graphite wounded gasket

Metal ring gasket

Pressure seal design

5. Packing Seal
Fexible graphite is used for packing material. PTFE or combined packing material can be also used if being requested by the customer.

6. Stem Design

The stem is of integral forged design. The minimum diameter of the stem shall per the standard requirement.

7. Backseat Design

All the globe valves have the backseat design. In most cases, the carbon steel globe valve is fitted with a renewable backseat. For stainless steel globe valve, the backseat is machined directly in the bonnet or is machined after welding.

8. Seat

For carbon steel globe valve, the seat is usually forged steel. The sealing surface of the seat is spray welded with hard alloy specified by the customer, For Stainless steel globe valve, integral seat is usually adopted, or to weld hard alloy directly integrally.

Quick Details:
1. Product: CS A105N Globe Valve 800LB

2. Constructions: OS&Y, Bolted Bonnet, Welded Bonnet
3. Port type: Full Port, Reduced Port
4. Size Range: 1 1/2", 1.5in
5. Pressure Ratings: ANSI Class 800LB / 800#
6. End Connections: NPT, Threaded, Screwed
6. Materials Available in: A105N

8. Various trim materials are available to suit different service conditions
9. NACE MR 0175 on request

Standards

Design and manufacture: API602, BS5352, ASME B16.34
End connection Standards:
1) Socket-weld dimension: ANSI B16.11
2) Screw thread dimension: ANSI B1.20.1
3) Butt-welding dimension: ANSI B16.25
4) Flange end dimension: ANSI B16.5

Valve inspection and test: API598

Material according to ANSI/ASTM

Description

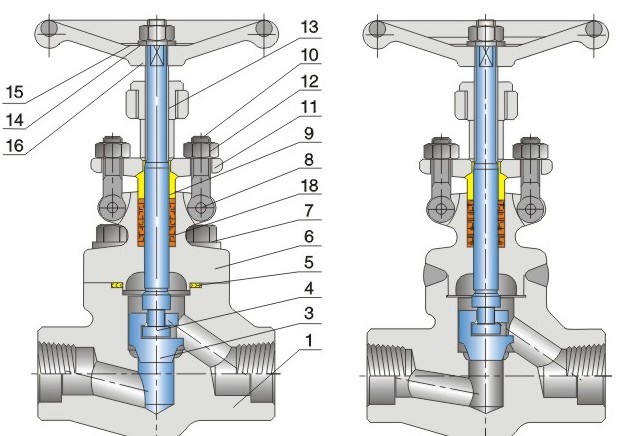

1. Parts and Material List for Forged Industrial Globe Valves

2. Main Connection Dimensions for CL800
