    Y Type Industrial Globe Valve Socket Weld Type 800LB J65H Handwheel Operated

    Ask Lasest Price
    Brand Name : Tengs Valve
    Model Number : J65
    Certification : ISO, CE
    Price : Negotiable
    Supply Ability : 800 Pcs Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    Y Type Industrial Globe Valve Socket Weld Type 800LB J65H Handwheel Operated

    Forged Y Type Globe Valve Carbon Steel A105N 800LB Bolted Bonnet Socket Weld SW J65H


    Quick Details:
    1. Product: Y Type Globe Valve 800LB

    2. Constructions: OS&Y, Bolted Bonnet, Welded Bonnet
    3. Port type: Full Port, Reduced Port
    4. Size Range: 1/2" to 2".
    5. Pressure Ratings: ANSI Class 800LB / 800#
    6. End Connections: SW, Socket Weld
    6. Materials Available in: A105 N

    8. Various trim materials are available to suit different service conditions


    Standards

    Design and manufacture: API602, BS5352, ASME B16.34
    End connection Standards:
    1) Socket-weld dimension: ANSI B16.11
    2) Screw thread dimension: ANSI B1.20.1
    3) Butt-welding dimension: ANSI B16.25
    4) Flange end dimension: ANSI B16.5

    Valve inspection and test: API598

    Material according to ANSI/ASTM


    Features

    1. Structure Features of Globe Valve
    Outside Screw and Yoke: Rising stems: Metallic seating surfaces

    2. Body and Bonnet Connection
    Bolted bonnet, Welded Bonnet, Pressure seal bonnet design.

    3. Bonnet Gasket Style

    Stainless steel + flexible graphite wounded gasket

    Metal ring gasket

    Pressure seal design

    5. Packing Seal
    Fexible graphite is used for packing material. PTFE or combined packing material can be also used if being requested by the customer.

    6. Stem Design

    The stem is of integral forged design. The minimum diameter of the stem shall per the standard requirement.

    7. Backseat Design

    All the globe valves have the backseat design. In most cases, the carbon steel globe valve is fitted with a renewable backseat. For stainless steel globe valve, the backseat is machined directly in the bonnet or is machined after welding.

    8. Seat

    For carbon steel globe valve, the seat is usually forged steel. The sealing surface of the seat is spray welded with hard alloy specified by the customer, For Stainless steel globe valve, integral seat is usually adopted, or to weld hard alloy directly integrally.


    Description

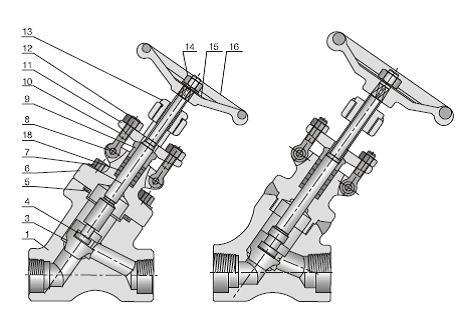

    1. Parts and Material List


    No.Part NameA105/F6aA105/F6aHFSLF2/304F11/F6aHFF304(L)/304(L)F316(L)/316(L)F51/F51
    1BodyA105A105+HFLF2F11+HFF304(L)F316(L)F51
    3DiscF6aF6aF304F6aHFF304(L)F316(L)F51
    4Stem410410304410304(L)316(L)F51
    5Gasket304 + Flexible garphite316 + Flexible garphite
    6BonnetA105A105LF2F11F304(L)F316(L)F51
    7BoltB7B7F7B16B8(M)B8(M)B8(M)
    8Pin410410410410304304304
    9Gland410410304410304316F51
    10EyeboltB7B7L7B16B8(M)B8(M)B8(M)
    11Gland FlangeA105A105LF2F11F304F304F304
    12Hex nut2H2H2H2H8(M)8(M)8(M)
    13Stem nut410410410410410410410
    14Lock nut35353535353535
    15Name plateALALALALALALAL
    16Hand wheelA197A197A197A197A197A197A197
    18PackingGraphiteGraphiteGraphiteGraphiteGraphiteGraphiteGraphite

    2. Main Connection Dimensions for 800LB Y Type Globe Valve

    Specification <NPS)R.P 1/23/411 1/41 1/2
    F.P1/43/81/23/411 1/4
    Face to face (mm)L989898120140140
    Handwheel (mm)W100100100125160160
    Height (mm)H180180180188280280
    Flow port diameter (mm)d791317.52330
    Weight (Kg)2.62.63.84.69.39.3
