Cast Steel A351 CF8M / SS316 One Piece Ball Valve Soft Seated SW / NPT 1000PSI

Quick Details

1. Product: Cast Stainless Steel A351 CF8M One Piece Ball Valve SW / NPT

2. Design: ANSI B16.34

3. Size Range: 1/2” - 2"

4. Pressure Ratings: 1000Psi

5. Body materials: Cast Stainless Steel A351 CF8M

6. Trim: 316SS

7. Bore Type: Full Bore

8. Actuator: Lever

9. NACE MR0175

10. One Piece (1 Pcs) Body

Features
1. Switch Indication of Hand Operated Ball Valve
As the moving parts of valve body, ball, stem and handle are an assembly unit. The head of valve stem is shaped a diploid, thus to easily distinguish whether valve is in the 'ON' position or 'OFF' position from handle position. When handle or stem diploid is in parallel with the pipe axis, valve is in 'ON' position; when handle or stem diploid is vertical to the pipe axis, valve is in 'OFF position.

2. Valve Locking Device
To prevent mis-operation, the fully opened or closed position of valve can be locked up, especially when valves are mounted outdoors or when valves are not allowed to be opened or closed by technical process. To prevent misoperation by other persons, it seems very important to have valve position locked up. Thereby, lockhole locating tab is designed if requested by users to meet the technological requirements of users.

3. Anti-Blowout Structure of Valve Stem
When medium passes through the valve, the pressure in valve body may possibly push the stem out, or when the valve is in repair, if there is pressure in the middle cavity, the stem or medium seems to easily blow out upon disassembling the valve, which can cause injuries to person. To prevent these possibilities, a dummy club is placed at the lower part of the stem. In this way, even if there is fire, packing and thrust bearing are burnt or packing is damaged due to other causes, the pressure of medium in valve body will make the dummy club of valve stem in close contact with the upper seal face of valve body, thus to prevent medium leaking out from the damaged packing position.

Description

1. Soft Seated Ball Valve Standards:

A. Design and manufacture: Ansi B16.34

B. Inspection and Test: API 598

C. Socket-weld dimension: ANSI B16.11

D. Screw thread dimension: ANSI B1.20.1

E. Face to face or End to ends: ASME B16.10

F. Pressure-temperature rating: ASME B16.34

2. Main Parts and Materials for the Floating Soft Seated Ball Valve One Piece Design

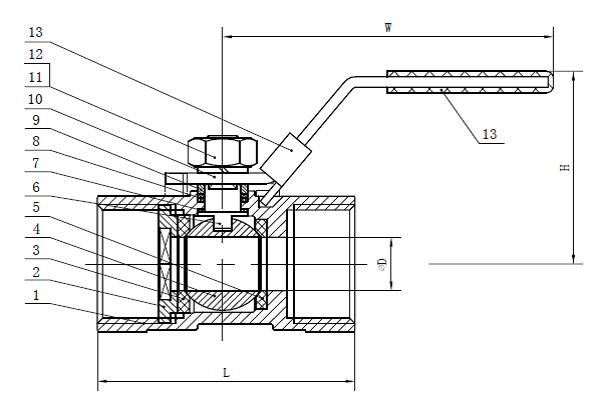

3. Main Connection Dimensions for the Cast Steel SW / Npt One Piece Soft Seated Ball Valve 1000Psi
