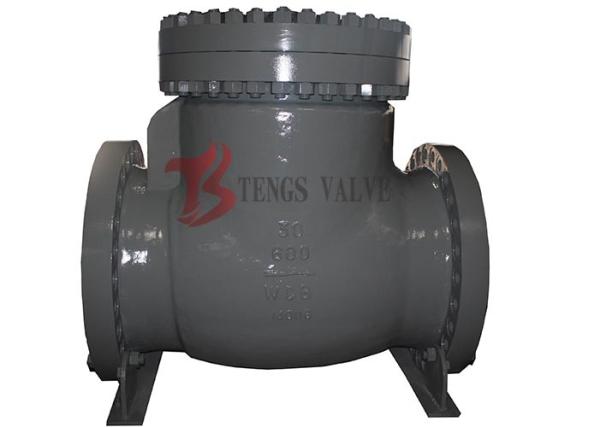

Api6D 30In 600LB Industrial Flanged Swing Check Valve Cast Carbon Steel HF H44

Quick Details:

1. Type: Swing Check Valve Carbon Steel
2. Bolted Bonnet, Swing Disc
3. Size Range: 30in
4. Pressure Ratings: ANSI Class 600LB / 600#
5. End Connections: Flanged (RF, RTJ), Butt weld (BW).
6. Materials: WCB, WCC, LCB, LCC, WC6, WC9, CF8, CF8M, CF3, CF3, CF8C, 4A, 5A.

7. Various trim materials available to suit service conditions
8. NACE MR 0175

Standards

Design and manufacture: Cast steel check valve according to BS 1868, ASME B16.34 and API 6D;
Forged stee! check valve according to API 602.

Inspection and test: API 598 or API 6D.

End flange dimension: ASME B16.5 (for NPS≤24),ASME B16.47 series B,

API 605 or ASME B16.47 series A,MSS SP-44 (for NPS > 24).

BW end dimension: ASME B16.25.

Face to face and end to end: ASME

Pressure-temperature ratings: ASME B16.34.

Shell wall thickness: API 600 and BS 1868.

Features

1. Generally

Bolted Bonnet / Bolted Cover;

Swing Disc;

Metallic Seating Surfaces

2. Body and Bonnet Connection

Class 600LB check valves are usually bolted bonnet.

3. Cover Gasket Style

Stain less steel + flexible graphite wounded gasket is used for Class 600LB check valve, and metal gasket is also optional for Class 600LB check valve

4. Seat

For carbon steel check valve, the seat is usually forged steel. The seat sealing surface may be spray-welded with hard alloy if specified by the customer.

Descriptions:

1. Swing Check Valve Parts and Material List:

2. Main Connection Dimensions for Class 600LB:
