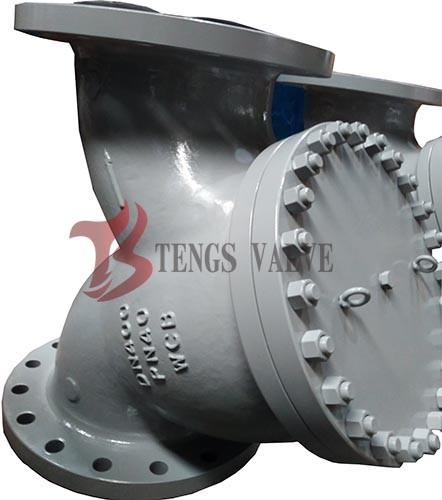

Din Flanged Y Type Strainer Cast Steel Industrial Y Pattern Filter Pn16 - Pn40

Features

1. Generally

Strainer is a kind of equipment that eliminates a small amount of impurities from liquid and gases. It can protect normal operation to compressor, pump and other equipment as well as instruments, also it can upgrade liquid and gases quality. So it can be widely used in petroleum, chemical industry, chemical fibre, pharmaceutical and food industry etc.

2. Y Strainer Features

A compact type strainer with low fluid resistance and requiring less installation space.

The Y type strainer can be widely used for removing dirt and dust from pipelines.

Lightweight, compact, and designed for easy piping, the Y type strainer comes in a wide variety of structures, shapes, and mesh types.

Strainer Applicable Medium
A) Weak corrosively medium for petrochemical production such as water, ammonia, oil and hydrocarbon products etc.

B) Corrosive medium for chemical products such as sodium hydrate, caustic soda, metric acid, acetic acid etc.

C) Low temperature medium for refrigeration, the refrigerant such as liquefied methane, liquefied ammonia, oxygen etc.

D) Industry hygiene medium in light industry, foodstuff and pharmacy such as beer, drink, beverage, dairy products etc.

Strainer Main Technical Paremeters
A) Operating Temperature(oC):CS:-30~380oC, SS: -80~450oC;

B) Operating Pressure(Mpa): 0.6 ~ 4.0 Mpa

C) Body Material: GS-C25, WCB, 1.4308, 1.4408, SS304, SS304L, SS316, SS316L etc.

D) Seal Material : Asbestos, NBR, PTFE, Graphite+SS.

E) Strainer Element Material: Stainless steel, Duplex Stainless Steel

F) Screen mesh from 10 mesh to 400 mesh,also we can produce according to customer's repuinement.
G) Shell inspection And Test: ISO5208 / Din

Descriptions:

1. Din Y Type Strainer Standards

2. Main Parts and Material List For Din Y Type Strainer

3. Main Connection Dimensions:

Tengs Valve - China High Quality Industrial Valve and Strainer Supplier, With More than 20 Years' Manufacturing and Exporting Experience.

Our Leading Products are Cast Steel / Forged Steel Industrial Valves and Strainers, Such as Gate Valve, Check Valve, Globe Valve, Ball Valve, Butterfly Valve, Y Type Strainer, Basket Strainer, T Type Strainer and Temporary Strainer.

All the Industrial Valves and Strainers are According to the International Standards Api, Ansi, Din, and GB etc, and the Materials Include Carbon Steel, Alloy Steel and Stainless Steel: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, 4A, 5A, C95800, A105, LF2, F11, SS304, SS304L, SS316, SS316L, F51 and F53 etc. Sizes Range From 1/2" to 48" (Dn15 - Dn1200), Pressure Rating From Ansi Class150LB to 2500LB (Pn10 - Pn100).

Modern Workshop, Standardized Production, We Implement Strict Quality Inspection System, In-House Inspection or Third-Party Inspection to Make Sure All the Products are Qualified Before Delivery.

Our Industrial Valve and Strainer are Widely Used in Oil, Gas, Petrochemical, Water Treatment and Energy Industries. And exported to Many Countries and Regions.

We Provide OEM & Custom-made Service, Hope to Cooperate and Provide You the Quality Products and Service.
